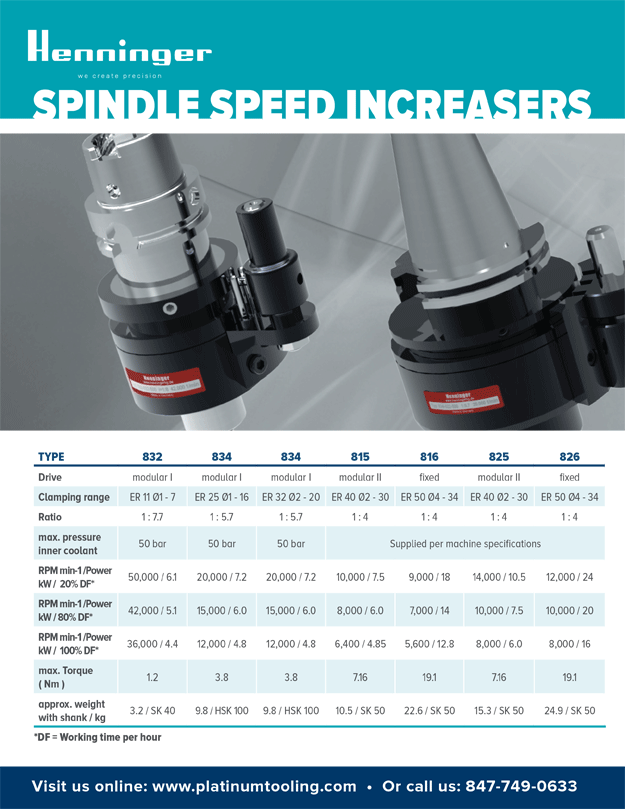

Mechanical Driven Spindle Speed Increasers

Henninger Spindle Speed Increasers help maximize productivity with gear ratios of up to 1:8. The tools allow for less wear and tear on the machine spindle.

• Up to 50,000 rpm max
• Tool changeable
• Internal coolant option available
• Modular design
• Up to ER 50 output

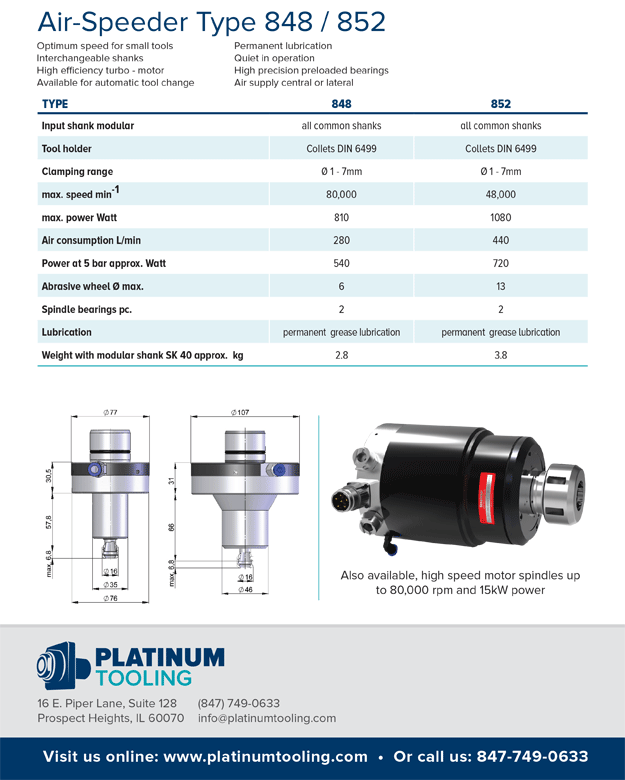

Air Speeders

Henninger Air Speeders allow for optimum rpm for small tools. Designed for tool shanks up to Ø 7mm (.275”).

• Up to 80,000 rpm continuous
• Air supply central or lateral
• Modular design
• High precision preloaded bearings
• Permanent grease lubrication
• ER 11 output

High Frequency Motor Spindles

Henninger High Frequency Motor Spindles offer a wide variety of products suitable for most high-speed applications. Some spindles can be equipped with automatic rotational speed control, integrated with the machine tool control, and available with automatic tool clamping (HSK 40E).

• Up to 80,000 rpm max
• High Torque
• Variable speed
• Cooling system
• Quiet/vibration free operation
• Permanent grease lubrication
